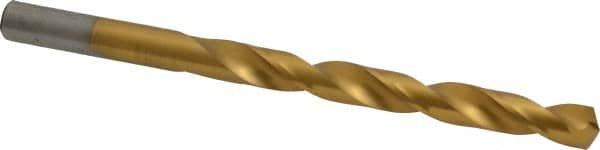

Chicago-Latrobe - Letter O 135° Cobalt Jobber Drill - TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2" OAL, Split Point
Item #: 60064052
Brand: Chicago-Latrobe
Model #: 54114
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | O |
| Drill Bit Size (Decimal Inch) | 0.3160 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-3/16 |
| Overall Length (Inch) | 4-1/2 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3160 |
| Spiral Type | Regular Spiral |
| Specification Designation | NAS |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Specification Number | NAS 907 |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M42 |
| Series/List | 2550 |
