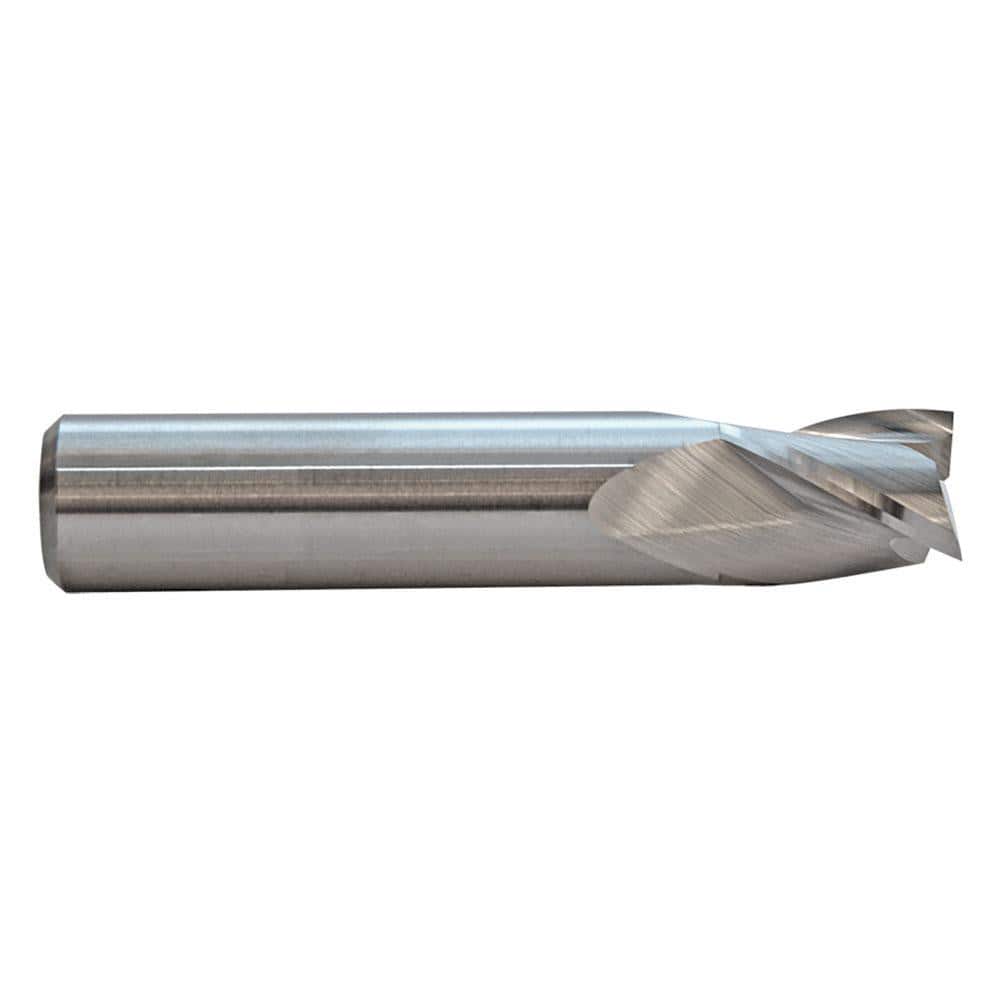

Square End Mill: 3/32'' Dia, 3/16'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 3 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, Centercutting, RH Cut, RH Flute, Series 169
Item #: 60041126
Brand: M.A. Ford?
Model #: 16909370
Product Specifications
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0938 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.1875 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Stub |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Series | 169 |
