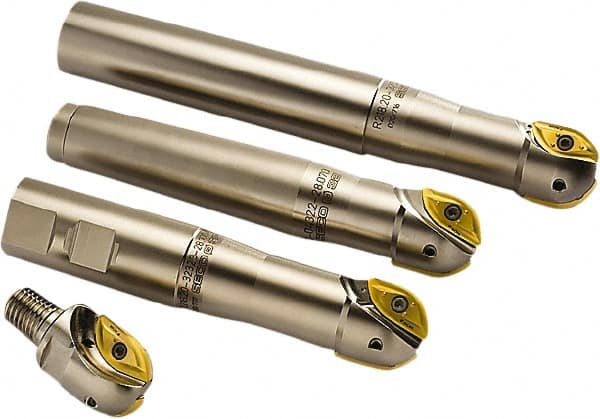

Seco - 3/4" Cut Diam, 0.66" Max Depth of Cut, Indexable Ball Nose End Mill - 1.1" Head Length, M10 Modular Connection, R218.20 Toolholder, 218.20 0.375.R Insert
Item #: 59978981
Brand: Seco
Model #: 05419
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6600 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 0.375.R |
| Toolholder Style | R218.20 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1000 |
| Maximum RPM | 20200 |
