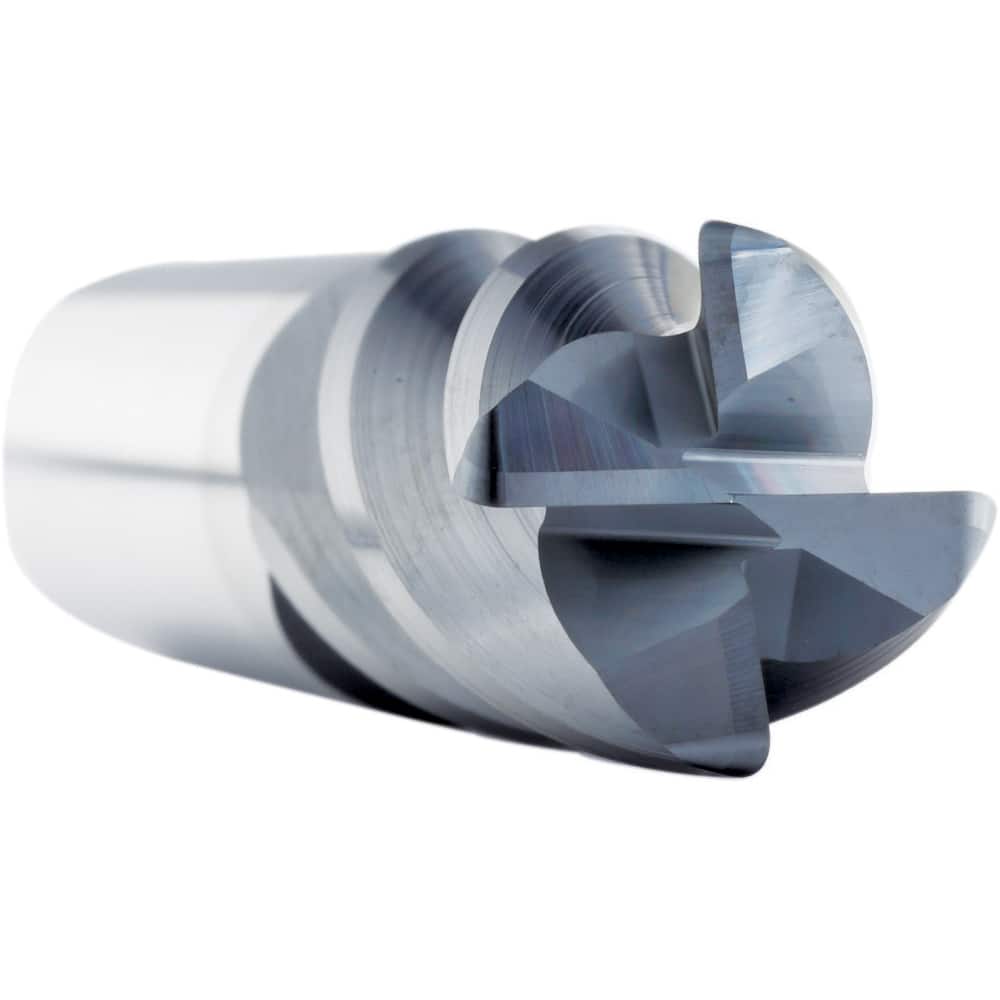

Supermill - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1 ; End Type: Corner Radius ; Number of Flutes: 4 ; Material: Solid Carbide ; Finish/Coating: AlCrN
Item #: 59971077
Brand: Supermill
Model #: SAP1.0L-250
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1 ; End Type: Corner Radius ; Number of Flutes: 4 ; Material: Solid Carbide ; Finish/Coating: AlCrN
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1 |
| End Type | Corner Radius |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Length of Cut (Inch) | 2-1/4 |
| Length of Cut (Decimal Inch) | 2.25 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 5 |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Series/List | SAP |
| Chipbreaker | No |
