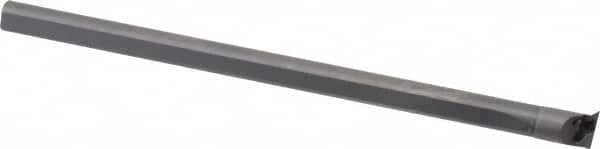

Kennametal - GP..., 5° Lead Angle CCPI Internal Right Hand Indexable Profiling Toolholder - 5/16" Shank Width, 6" Long, Carbide (Shank) & Steel (Head), Through Coolant
Item #: 59871574
Brand: Kennametal
Model #: 1950275
Exact Tooling IR#: 04
Features and Benefits
Carbide (shank), steel (head) tool holders are heat resistant and used for high speed applications. They are economical and used for short-run jobs. The steel head is commonly attached to a carbide shank.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | GP... |
| Toolholder Style | CCPI |
| Series | C |
| Toolholder Material | Carbide (Shank), Steel (Head) |
| Through Coolant | Yes |
| Shank Width/Diameter (Inch) | 5/16 |
| Shank Width/Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 5 |
| Offset Angle | 5 |
| Minimum Hole Diameter (Decimal Inch) | 0.4230 |
| Center to Cutting Edge (Decimal Inch) | 0.2510 |
| Maximum Hole Depth (Inch) | 4 |
| Maximum Hole Depth (Decimal Inch) | 4.0000 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Complete Insert Compatibility | GPCD; GPHW |
