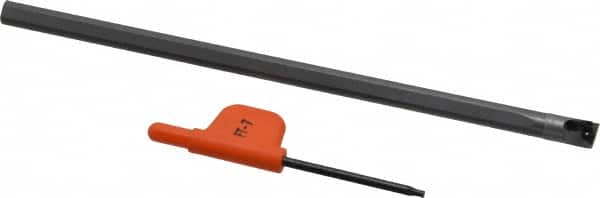

Kennametal - 0.3" Min Bore Diam, 6" OAL, 1/4" Shank Diam, FCBI Indexable Boring Bar - 2-1/2" Max Bore Depth, TD.. Insert, Screw Holding Method
Item #: 59869321
Brand: Kennametal
Model #: 1270965
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | FCBI |
| Series | F |
| Minimum Bore Diameter (Decimal Inch) | 0.3000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 2-1/2 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | TD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Insert Inscribed Circle (Decimal Inch) | 0.1600 |
| Rake Angle | 5 |
| Coolant Hole Diameter (Decimal Inch) | 0.0470 |
| Complete Insert Compatibility | TDAB 51; TDAB 52; TDAB 500; TDAB 505; TDAT 51; TDAT 505; TDCG 51; TDCG 52; TDCG 505 |
| Toolholder Material | Carbide (Shank), Steel (Head) |
