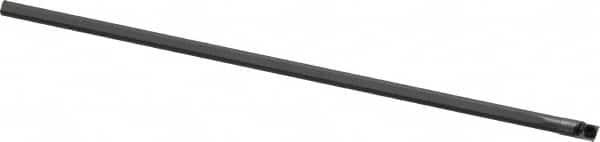

Kennametal - 0.18" Min Bore Diam, 6" OAL, 5/32" Shank Diam, CCBI Indexable Boring Bar - 1-9/16" Max Bore Depth, CDC Insert, Screw Holding Method
Item #: 59868349
Brand: Kennametal
Model #: 1271036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | CCBI |
| Series | C |
| Minimum Bore Diameter (Decimal Inch) | 0.1800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 1-9/16 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Inch) | 5/32 |
| Shank Diameter (Decimal Inch) | 0.1563 |
| Insert Compatibility | CDC |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 7 |
| Center to Cutting Edge (Decimal Inch) | 0.0950 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Rake Angle | 0 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Complete Insert Compatibility | CDCD 51; CDCD 500; CDCD 505; CDCG 51; CDCG 505; CDCT 51; CDCT 505 |
| Toolholder Material | Carbide (Shank), Steel (Head) |
