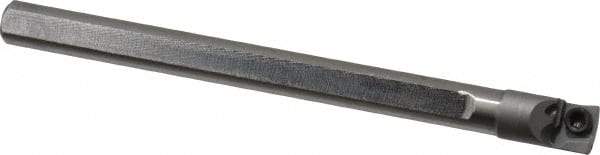

Kennametal - 0.244" Min Bore Diam, 2-1/2" OAL, 3/16" Shank Diam, CSBI Indexable Boring Bar - 3/4" Max Bore Depth, CDC Insert, Screw Holding Method
Item #: 59868117
Brand: Kennametal
Model #: 1288861
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | CSBI |
| Series | C |
| Minimum Bore Diameter (Decimal Inch) | 0.2440 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 3/4 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Insert Compatibility | CDC |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Center to Cutting Edge (Decimal Inch) | 0.1220 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Rake Angle | 5 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Complete Insert Compatibility | CDCD 51; CDCD 500; CDCD 505; CDCG 51; CDCG 505; CDCT 51; CDCT 505 |
| Toolholder Material | Steel |
