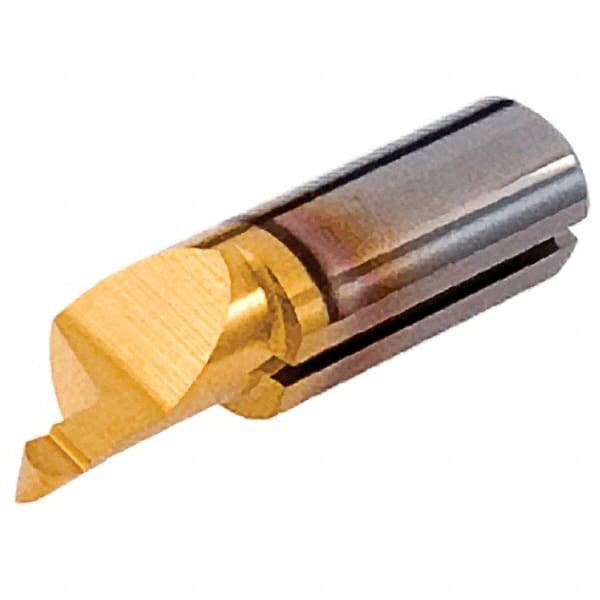

Iscar - 2.01mm Groove Width, 7.87mm Min Hole Diam, 11mm Max Hole Depth, Face Grooving Tool - 3.99mm Projection, 0.591" Shank Length, 26.01mm OAL, Solid Carbide, TiN/TiAlN Finish
Item #: 59790097
Brand: Iscar
Model #: 6403907
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiN/TiALN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2760 |
| Shank Diameter (mm) | 7.01 |
| Groove Width (Decimal Inch) | 0.0790 |
| Groove Width (mm) | 2.01 |
| Projection (Decimal Inch) | 0.1570 |
| Projection (mm) | 3.99 |
| Minimum Hole Diameter (Decimal Inch) | 0.3100 |
| Minimum Hole Diameter (mm) | 7.87 |
| Maximum Hole Depth (Decimal Inch) | 0.4330 |
| Maximum Hole Depth (mm) | 11.00 |
| Overall Length (Decimal Inch) | 1.0240 |
| Overall Length (mm) | 26.01 |
| Finish/Coating | TiN/TiAlN |
| Shank Length (Decimal Inch) | 0.5910 |
| Manufacturer Grade | IC1008 |
| Material Grade | Submicron |
