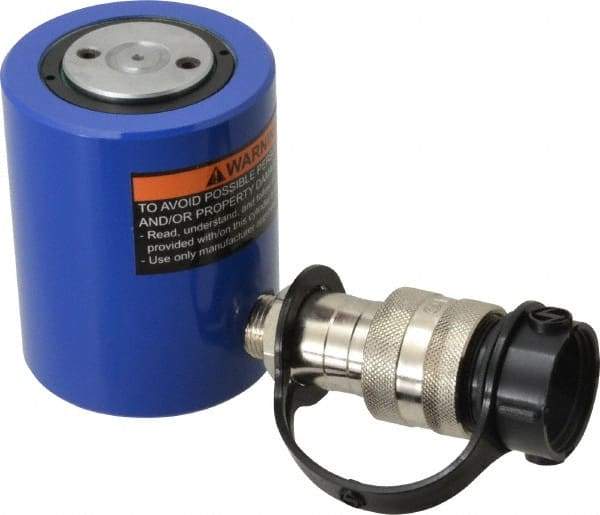

Value Collection - 10 Ton, 1.5" Stroke, 3.53 Cu In Oil Capacity, Portable Hydraulic Low Profile Cylinder - 2.35 Sq In Effective Area, 3.48" Lowered Ht., 4.98" Max Ht., 1.73" Cyl Bore Diam, 1.5" Plunger Rod Diam, 10,000 Max psi
Item #: 59755405
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Low Profile |
| Load Capacity (Ton) | 10 |
| Piston Stroke (Decimal Inch) | 1.50 |
| Cylinder Bore Diameter (Decimal Inch) | 1.73 |
| Lowered Height | 3.48 |
| Oil Capacity | 3.53 |
| Effective Area | 2.35 |
| Maximum Height (Decimal Inch) | 4.98 |
| Outside Diameter (Inch) | 2-3/4 |
| Plunger Diameter | 1.50 |
| Plunger Internal Thread Size | M4 x 0.7 |
| Plunger Internal Thread Length | 0.32 |
| Base Mounting Holes Bolt Circle (Inch) | 1-1/32 |
| Maximum Pressure (psi) | 10000 |
