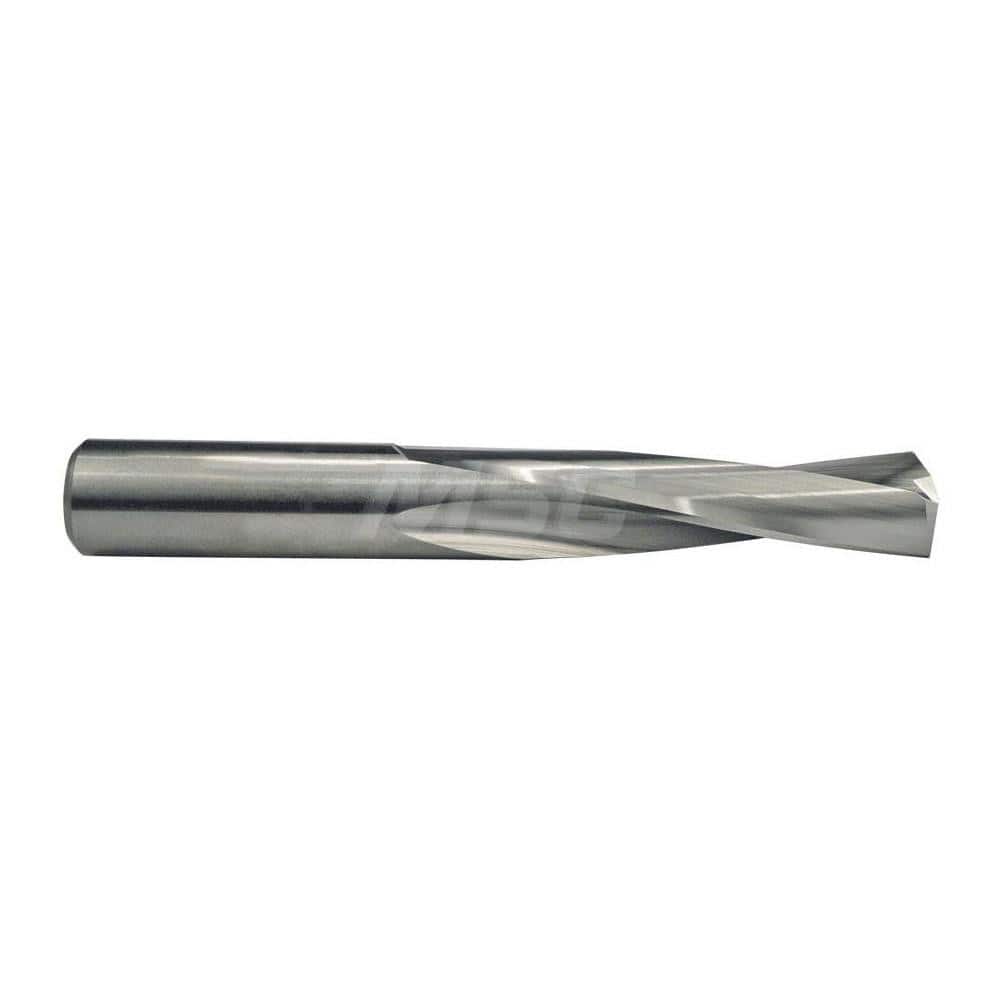

Screw Machine Length Drill Bit: 0.0138″ Dia, 135 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 205
Item #: 59564872
Brand: M.A. Ford?
Model #: 20501380
Product Specifications
| Drill Bit Size (mm) | 0.35 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 135 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0138 |
| Drill Bit Size (Decimal Inch) | 0.0138 |
| Overall Length (mm) | 38.00 |
| Overall Length (Decimal Inch) | 1.4961 |
| Shank Diameter (mm) | 0.35 |
| Series | 205 |
| Web Thinning | Web-Thinned |
| Number of Margins | 1 |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 1.2992 |
| Shank Length (mm) | 33.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.013 mm |
| Flute Length (mm) | 5.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
