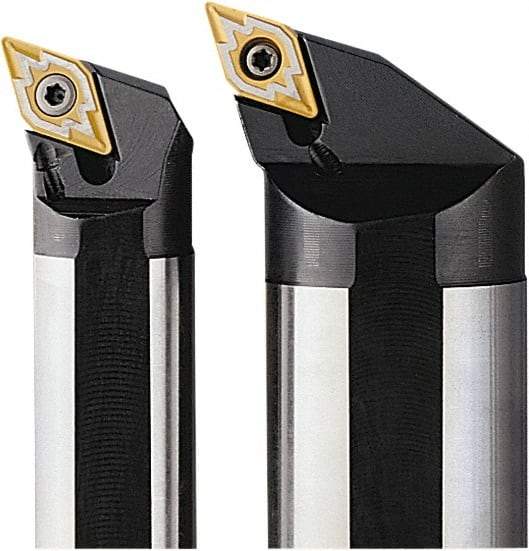

Seco - 25mm Min Bore Diam, 180mm OAL, 20mm Shank Diam, A-SDQN Indexable Boring Bar - 30mm Max Bore Depth, Screw Holding Method
Item #: 59536334
Brand: Seco
Model #: 78295
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDQN |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 30.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -5 |
| Toolholder Material | Steel |
