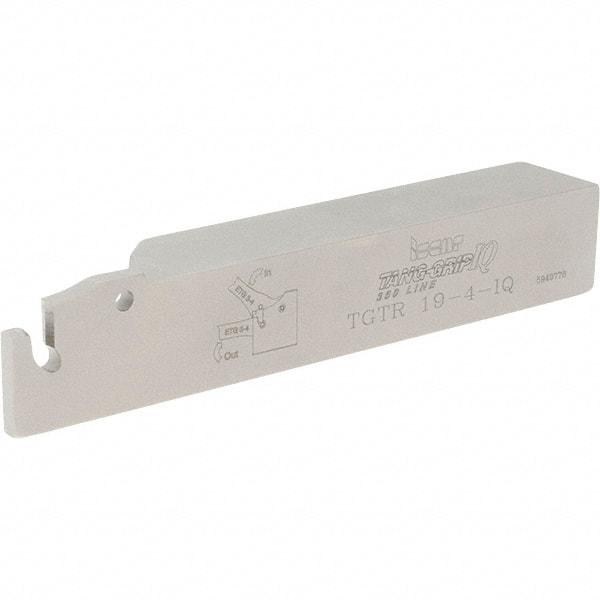

Iscar - External Thread, 1" Max Depth of Cut, 3.7mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 59456228
Brand: Iscar
Model #: 2301825
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (Decimal Inch) | 0.1457 |
| Minimum Groove Width (mm) | 3.70 |
| Maximum Groove Width (Decimal Inch) | 0.1770 |
| Maximum Groove Width (mm) | 4.50 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 0.8200 |
| Head Length (Decimal Inch) | 0.9000 |
| Shank Length (Decimal Inch) | 3.6000 |
| Complete Insert Compatibility | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
