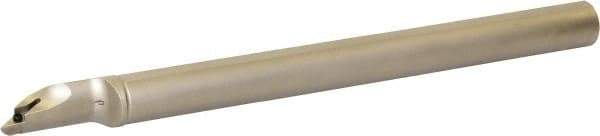

Kyocera - 0.984" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-SVJP(C)(B)-AE Indexable Boring Bar - VBET 22.., VBGT 22.., VBGW 22.., VBMT 22.. Insert, Screw Holding Method
Item #: 59402750
Brand: Kyocera
Model #: 8607633
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVJP(C)(B)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (Decimal Inch) | 0.9840 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | VBET 22..; VBGT 22..; VBGW 22..; VBMT 22.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing; Internal Spherical Machining |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 52 |
| Center to Cutting Edge (Decimal Inch) | 0.0790 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -5 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | VBET 22013MR/L-F; VBET 22013MR/L-Y; VBET 22015MR/L-FSF; VBET 2201R/L-FSF; VBET 2202MR/L-F; VBET 2202MR/L-FSF; VBET 2202MR/L-Y; VBET 2202R/L-FSF; VBET 2205MR/L-F; VBET 2205MR/L-FSF; VBET 2205MR/L-Y; VBET 2205R/L-FSF; VBET 221MR/L-Y; VBGT 22013MR/L-F; VBGT |
| Toolholder Material | Steel |
