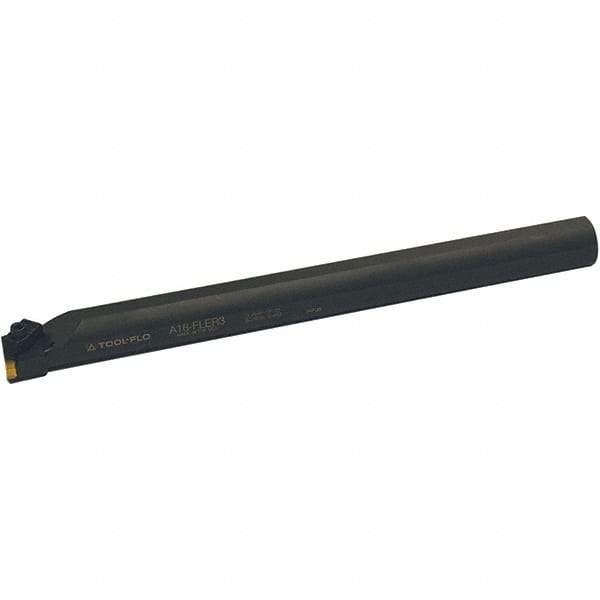

Tool-Flo - A-FLSL, Internal, Left Hand, 0.29" Max Depth of Cut, Indexable Grooving Tool Holder - FLFD-3LI Insert Compatibility, 1-3/4" Shank Width, 14" OAL, Through Coolant
Item #: 59270611
Brand: Tool-Flo
Model #: 96422816
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Overall Length (Decimal Inch) | 14.0000 |
| Toolholder Style | A-FLSL |
| Insert Compatibility | FLFD-3LI |
| Shank Width/Diameter (Decimal Inch) | 1.7500 |
| Series | Flo-Lock |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 1.0150 |
| Manufacturers Catalog Number | A28-FLSL3 |
| Complete Insert Compatibility | FLFD-3125LI; FLFD-3125LI-CB; FLFD-3189LI; FLFD-3189LI-CB |
| Minimum Bore Diameter (Decimal Inch) | 2.2500 |
| Shank Diameter (Decimal Inch) | 1.7500 |
