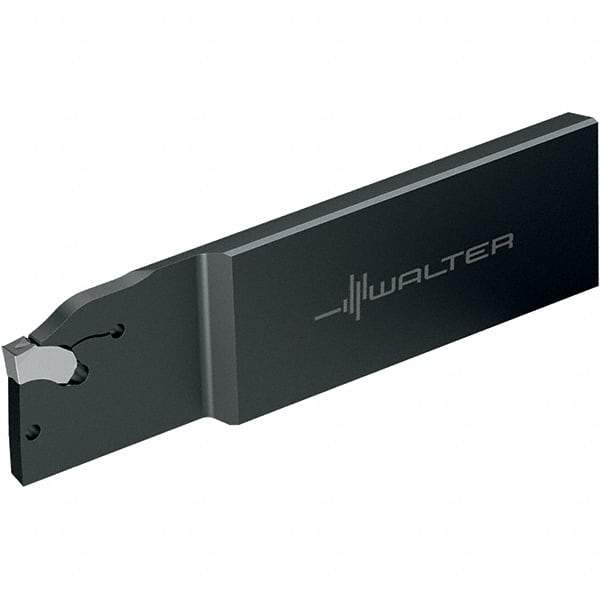

Walter - G2042, External, Right Hand, 33mm Max Depth of Cut, 4mm Min Groove Width, Indexable Grooving Tool Holder - SX-4.. Insert Compatibility, 8mm Shank Height, 0.315" Shank Width, 110mm OAL, Through Coolant
Item #: 59236836
Brand: Walter
Model #: 6530231
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 1.2990 |
| Maximum Depth of Cut (Decimal Inch) | 1.2990 |
| Maximum Depth of Cut (mm) | 33.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3310 |
| Toolholder Style | G2042 |
| Insert Compatibility | SX-4.. |
| Shank Height (mm) | 8.00 |
| Shank Height (Decimal Inch) | 0.3150 |
| Shank Width/Diameter (Inch) | 0.3150 |
| Shank Width/Diameter (mm) | 8.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3150 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Insert Holding Method | Self Grip |
| Number of Inserts Used on Toolholder | 1 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1650 |
| Shank Length (mm) | 55.00 |
| Shank Length (Inch) | 2.1660 |
| Shank Length (Decimal Inch) | 2.1660 |
| Toolholder Material | Steel |
