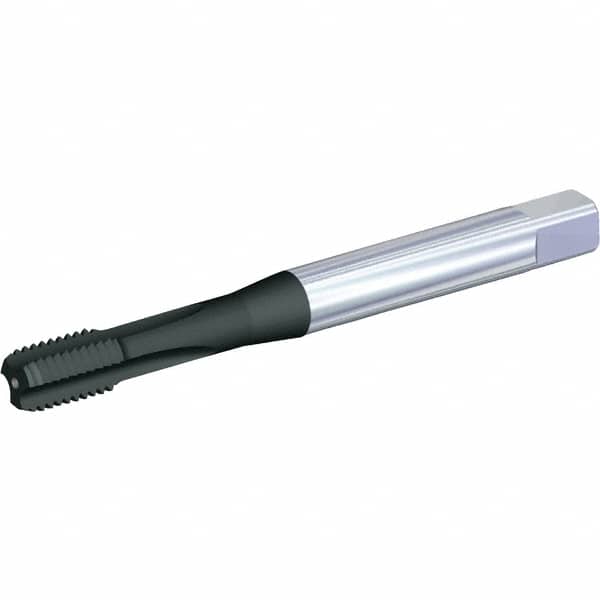

Kennametal - M8x1.25 Metric 6HX 3 Flute CrC/C Finish Solid Carbide Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 3.54" OAL, 0.39" Thread Length, Oversize, Through Coolant
Item #: 59227298
Brand: Kennametal
Model #: 5520808
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M8x1.25 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Solid Carbide |
| Finish/Coating | CrC/C |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric |
| Overall Length (Decimal Inch) | 3.54000 |
| Overall Length (Inch) | 3.5400 |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Material Grade | KCN14 |
| Series/List | T471 |
| Thread Length (Decimal Inch) | 0.3900 |
| Thread Length (Inch) | 0.3900 |
| Thread Length (mm) | 10.00 |
| Neck Length (Inch) | 0.9900 |
| Tapping Depth (mm) | 35 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Shank Length (Decimal Inch) | 1.82 |
| Shank Length (mm) | 46 |
| Square Length (Inch) | 0.3500 |
| Square Size (Decimal Inch) | 0.2410 |
| Square Size (mm) | 6.13 |
