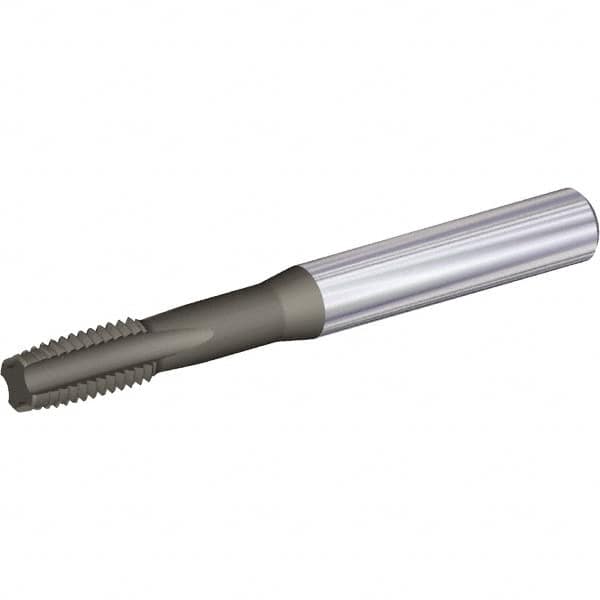

Kennametal - 1/4-20 UNC 3BX 4 Flute AlCrTiN Finish Solid Carbide Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 2.76" OAL, 0.59" Thread Length, Oversize
Item #: 59227181
Brand: Kennametal
Model #: 5551034
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) and titanium silicon nitride (TISIN) is a multi-layered coating that is extremely wear resistant. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 1/4-20 |
| Class of Fit | 3BX |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | Solid Carbide |
| Finish/Coating | AlCrTiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.76000 |
| Overall Length (Inch) | 2.7600 |
| Overall Length (mm) | 70.00 |
| Oversize | No |
| Material Grade | KCK17 |
| Series/List | T340 |
| Thread Length (Decimal Inch) | 0.5900 |
| Thread Length (Inch) | 0.5900 |
| Thread Length (mm) | 15.00 |
| Neck Length (Inch) | 0.3500 |
| Tapping Depth (mm) | 24 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 6.35 |
| Shank Length (Decimal Inch) | 1.63 |
| Shank Length (mm) | 41 |
