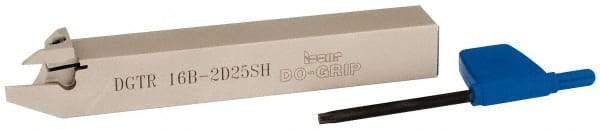

Iscar - DGT, External, Right Hand, 3mm Max Depth of Cut, 1.9 to 2.5mm Groove Width, Indexable Grooving Tool Holder - DG.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 120mm OAL
Item #: 59057679
Brand: Iscar
Model #: 2301537
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Minimum Groove Width (mm) | 1.90 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | Do-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (mm) | 25.40 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (mm) | 15.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5984 |
| Head Height (Decimal Inch) | 0.7756 |
| Head Height (mm) | 19.70 |
| Complete Insert Compatibility | DGL 2202C-6D; DGN 1900WP; DGN 2002C; DGN 2002Z; DGN 2202C; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C; DGR 2202C-6D |
