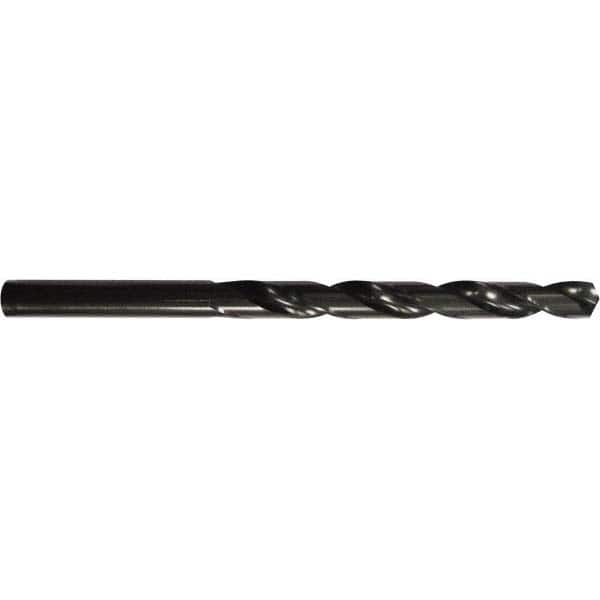

Taper Length Drill Bit: 0.0236″ Dia, 118 ° Bright/Uncoated, RH Cut, Spiral Flute, Cylindrical Shank, Series 217
Item #: 59039180
Brand: Guhring
Model #: 9002170006000
Product Specifications
| Drill Bit Size (mm) | 0.60 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 15.00 |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 35.00 |
| Shank Diameter (mm) | 0.60 |
| Drill Bit Size (Decimal Inch) | 0.0236 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 217 |
| Shank Diameter (Decimal Inch) | 0.0236 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 0.5550 |
| Maximum Drilling Depth (mm) | 14.10 |
| Shank Length (mm) | 20.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Tool Performance | General Purpose |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Threaded Shank | No |
| Standards | DIN 340 |
| Specification Number | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-2 |
