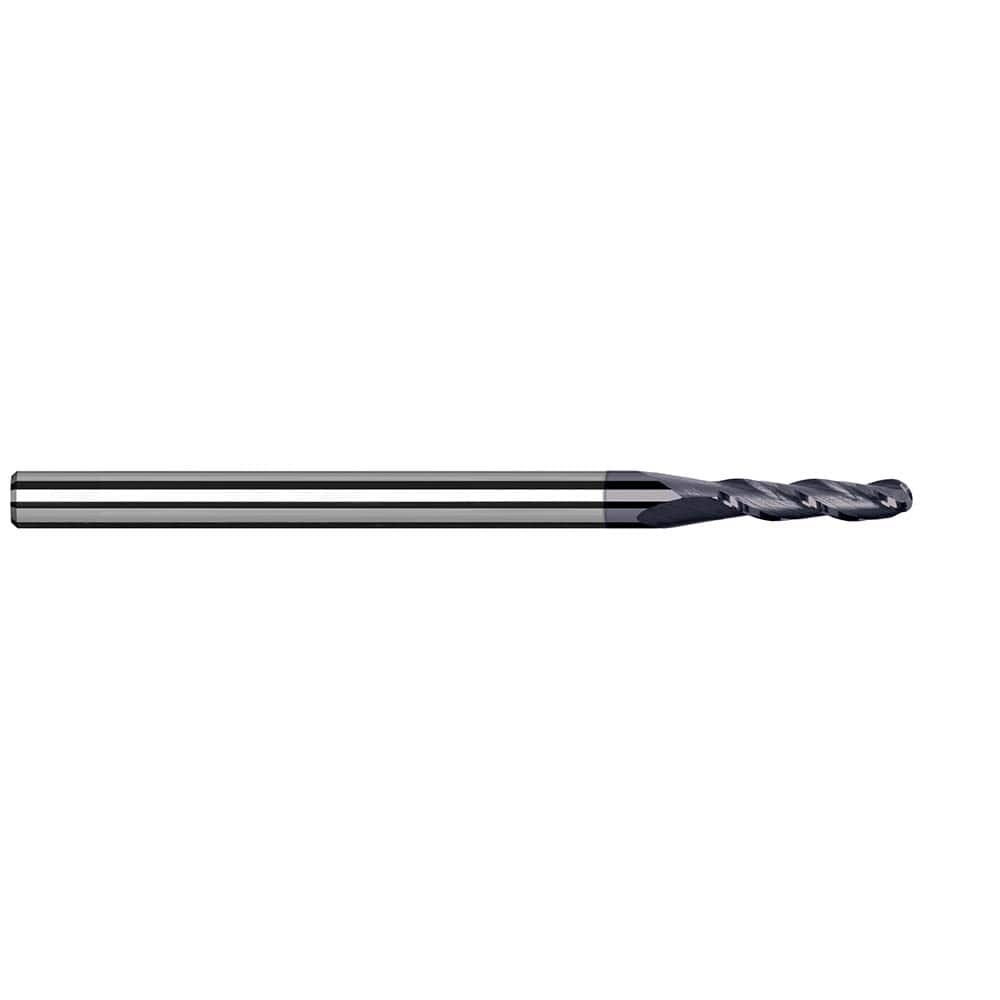

Harvey Tool - Ball End Mills; Mill Diameter (mm): 2.00 ; Mill Diameter (Decimal Inch): 0.0787 ; Number of Flutes: 3 ; Length of Cut (mm): 6.0000 ; Length of Cut (Decimal Inch): 0.2362 ; Material: Solid Carbide
Item #: 59010918
Brand: Harvey Tool
Model #: 975345-C6
Product Specifications
Ball End Mills; Mill Diameter (mm): 2.00 ; Mill Diameter (Decimal Inch): 0.0787 ; Number of Flutes: 3 ; Length of Cut (mm): 6.0000 ; Length of Cut (Decimal Inch): 0.2362 ; Material: Solid Carbide
| Mill Diameter (mm) | 2.00 |
| Mill Diameter (Decimal Inch) | 0.0787 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 6.0000 |
| Length of Cut (Decimal Inch) | 0.2362 |
| Material | Solid Carbide |
| Overall Length (mm) | 50.0000 |
| Shank Diameter (mm) | 4.0000 |
| Finish/Coating | AlTiN Nano |
| Single or Double End | Single |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Series/List | Variable Helix End Mills for High Temp Alloys - Ball |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
