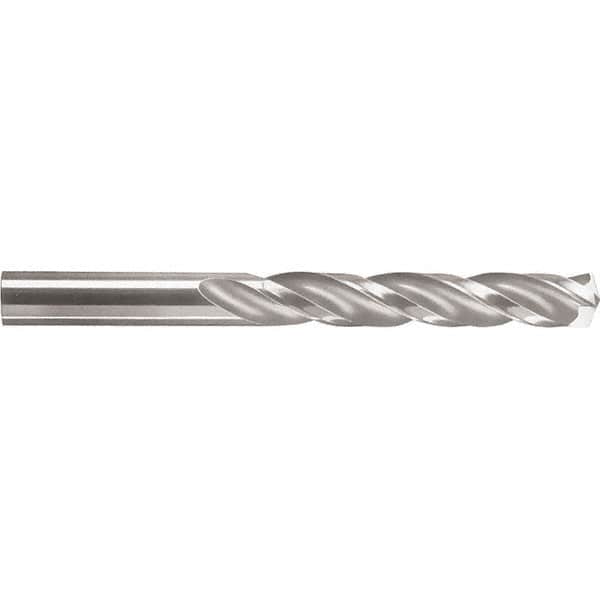

SGS - 10.7mm 150° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiCN Finish, Right Hand Cut, 47mm Flute Length, 95mm OAL, Standard Point, Straight Shank
Item #: 59003939
Brand: SGS
Model #: 68948
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4213 |
| Drill Bit Size (mm) | 10.70 |
| Drill Point Angle | 150 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiCN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 10.70 |
| Shank Diameter (Decimal Inch) | 0.4213 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Threaded Shank | No |
| Number of Flutes | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.0000 to -0.0127 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Drill Tip Finish/Coating | None |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Material Grade | Micrograin |
| Series/List | 103 |
| Length Type | Regular |
