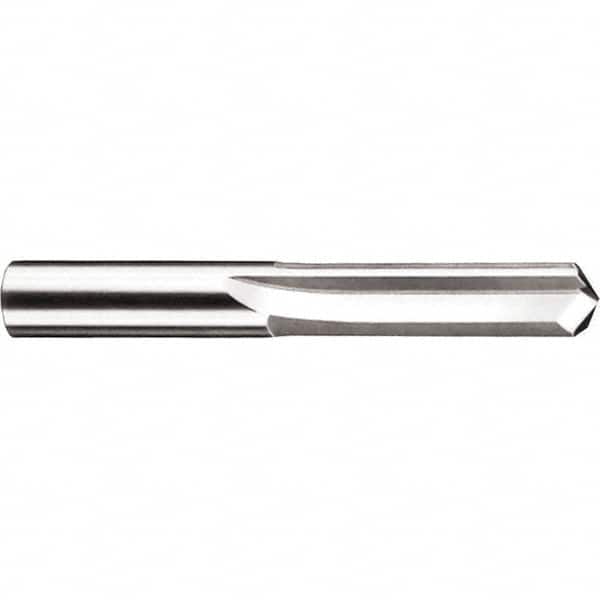

Die Drill Bit: 1/4″ Dia, 140 °, Solid Carbide TiCN Finish, 1-3/8″ Flute Length, 2-1/2″ OAL
Item #: 59003053
Brand: SGS
Model #: 58453
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 1/4 |
| Tool Material | Carbide |
| Coating/Finish | Coated |
| Flute Length (Decimal Inch) | 1.3750 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 2-1/2 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 2.5000 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Standards | DIN 6539 |
| Shank Length (Inch) | 1-1/8 |
| Shank Length (Decimal Inch) | 1.1250 |
| Flute By Diameter Ratio | 3xD |
