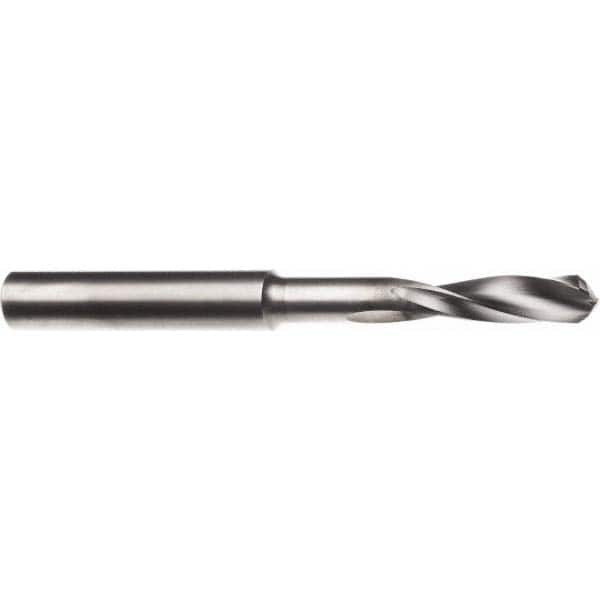

Screw Machine Length Drill Bit: 0.1285″ Dia, 145 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 120
Item #: 58999459
Brand: SGS
Model #: 50005
Product Specifications
| Drill Bit Size (Wire) | #30 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 145 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Eight Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Drill Bit Size (Decimal Inch) | 0.1285 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Series | 120 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7500 |
| Shank Length (Inch) | 1-7/16 |
| Shank Length (Decimal Inch) | 1.4375 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 0.7500 |
| Flute Length (Inch) | 3/4 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Material Grade | Micrograin |
