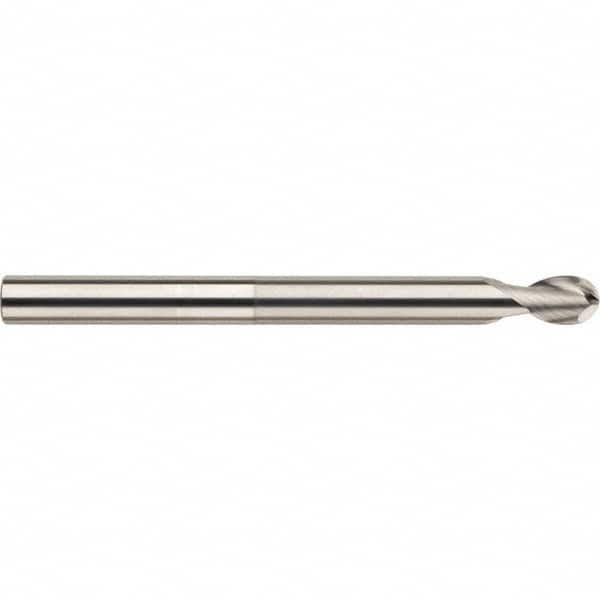

SGS - 10mm Diam, 12mm LOC, 2 Flute Solid Carbide Ball End Mill - Uncoated, Single End, 100mm OAL, 10mm Shank Diam, Spiral Flute
Item #: 58996752
Brand: SGS
Model #: 44583
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 12.00 |
| Length of Cut (Decimal Inch) | 0.4724 |
| Material | Solid Carbide |
| Overall Length (mm) | 100.00 |
| Shank Diameter (mm) | 10.00 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 35.00 |
| Neck Length (Decimal Inch) | 1.6535 |
| Extended Reach | Yes |
| Material Grade | Micrograin |
| Mill Diameter Tolerance (mm) | +0.0025/-0.0100 |
| Flute Type | Spiral |
| Undercutting | No |
| Shank Diameter Tolerance (mm) | +0.000/-0.009 |
| Length Type | Long |
| Reach Length (mm) | 54.00 |
| Reach Length (Decimal Inch) | 2.1260 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
