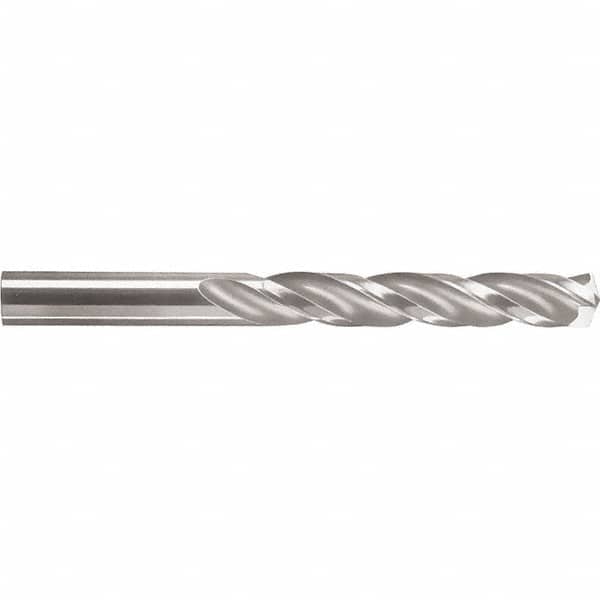

Screw Machine Length Drill Bit: 0.3701″ Dia, 150 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 103
Item #: 58992371
Brand: SGS
Model #: 69029
Product Specifications
| Drill Bit Size (mm) | 9.40 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 150 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.3701 |
| Drill Bit Size (Decimal Inch) | 0.3701 |
| Overall Length (mm) | 84.00 |
| Overall Length (Decimal Inch) | 3.3071 |
| Shank Diameter (mm) | 9.40 |
| Series | 103 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.7323 |
| Shank Length (mm) | 44.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in; +0.0000 to -0.0127 mm |
| Flute Length (Decimal Inch) | 1.5748 |
| Flute Length (mm) | 40.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
| Material Grade | Micrograin |
