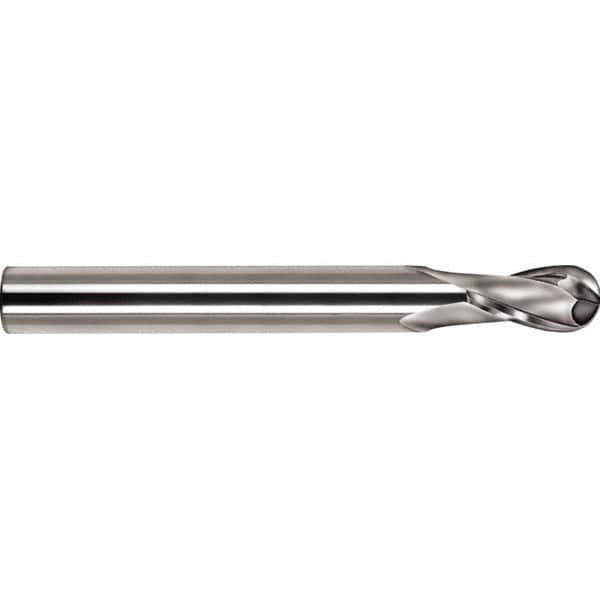

SGS - 10mm Diam, 25mm LOC, 2 Flute Solid Carbide Ball End Mill - TiCN Finish, Single End, 100mm OAL, 10mm Shank Diam, Spiral Flute
Item #: 58986035
Brand: SGS
Model #: 49636
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 25.00 |
| Length of Cut (Decimal Inch) | 0.9843 |
| Material | Solid Carbide |
| Overall Length (mm) | 100.00 |
| Shank Diameter (mm) | 10.00 |
| Finish/Coating | TiCN |
| Single or Double End | Single |
| Helix Angle | 30.00 |
| Extended Reach | Yes |
| Material Grade | Micrograin |
| Mill Diameter Tolerance (mm) | +0.000/-0.050 |
| Flute Type | Spiral |
| Undercutting | No |
| Shank Diameter Tolerance (mm) | +0.000/-0.009 |
| Length Type | Long |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
