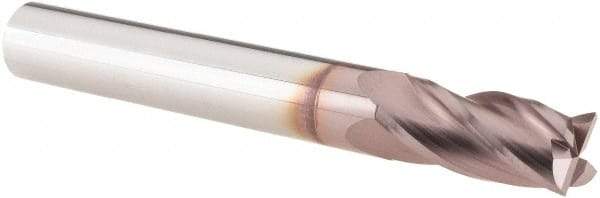

SGS - 8.5mm, 19mm LOC, 8.5mm Shank Diam, 67mm OAL, 4 Flute, Solid Carbide Square End Mill - Single End, TiCN Finish, Spiral Flute, 30° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Item #: 58978354
Brand: SGS
Model #: 49739
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.50 |
| Mill Diameter (Decimal Inch) | 0.3346 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 19.00 |
| Length of Cut (Decimal Inch) | 0.7480 |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Shank Diameter (mm) | 8.50 |
| Single or Double End | Single |
| Overall Length (mm) | 67.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Flute Type | Spiral |
| Length Type | Regular |
| Mill Diameter Tolerance (mm) | +0.000/-0.058 |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (mm) | +0.000/-0.009 |
