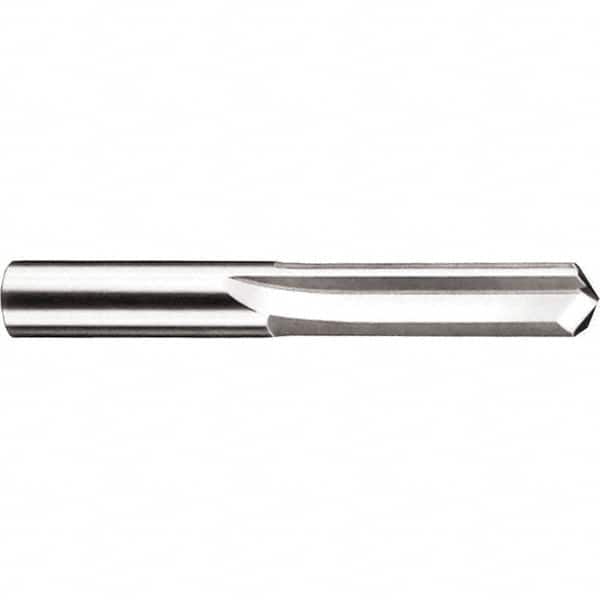

Die Drill Bit: 9/32″ Dia, 140 °, Solid Carbide Coated, Series 106
Item #: 58971599
Brand: SGS
Model #: 58365
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 9/32 |
| Tool Material | Carbide |
| Coating/Finish | Coated |
| Flute Length (Decimal Inch) | 1.5000 |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2813 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 2.6880 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Standards | DIN 6539 |
| Shank Length (Inch) | 1-3/16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Flute By Diameter Ratio | 3xD |
