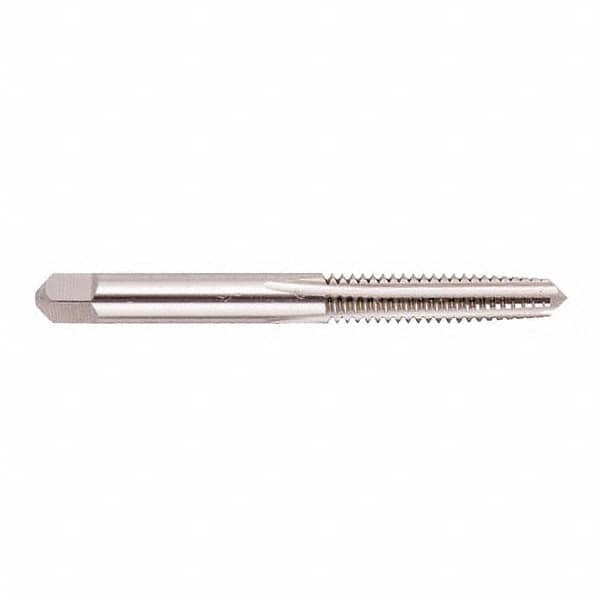

Regal Cutting Tools - M3x0.50 Metric Coarse, D1, 3 Flute, Plug Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 1-15/16" OAL, 5/8" Thread Length, 3/16" Square Length, 0.11" Square Size
Item #: 58868076
Brand: Regal Cutting Tools
Model #: 007253AS
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3x0.50 |
| Thread Limit | D1 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Finish/Coating | Bright |
| Overall Length (Inch) | 1-15/16 |
| Thread Standard | Metric Coarse |
| Thread Length (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
| Material | High Speed Steel |
