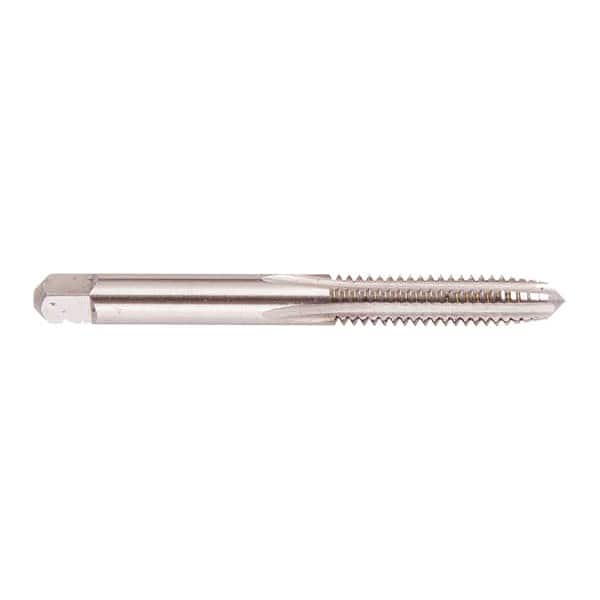

Regal Cutting Tools - 1-1/8 - 12 UNF, H6, 4 Flute, Taper Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 5-7/16" OAL, 2-9/16" Thread Length, 7/8" Square Length, 0.672" Square Size, 2B Class of Fit
Item #: 58867995
Brand: Regal Cutting Tools
Model #: 013374AS
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers are known as a starter tap. They have a longer chamfer and require a less aggressive cutting action. They are 7 to 10 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1-1/8 - 12 |
| Class of Fit | 2B |
| Thread Limit | H6 |
| Number of Flutes | 4 |
| Chamfer | Taper |
| Finish/Coating | Bright |
| Overall Length (Inch) | 5-7/16 |
| Thread Standard | UNF |
| Thread Length (Inch) | 2-9/16 |
| Shank Diameter (Decimal Inch) | 0.8960 |
| Square Length (Inch) | 7/8 |
| Square Size (Decimal Inch) | 0.6720 |
| Material | High Speed Steel |
