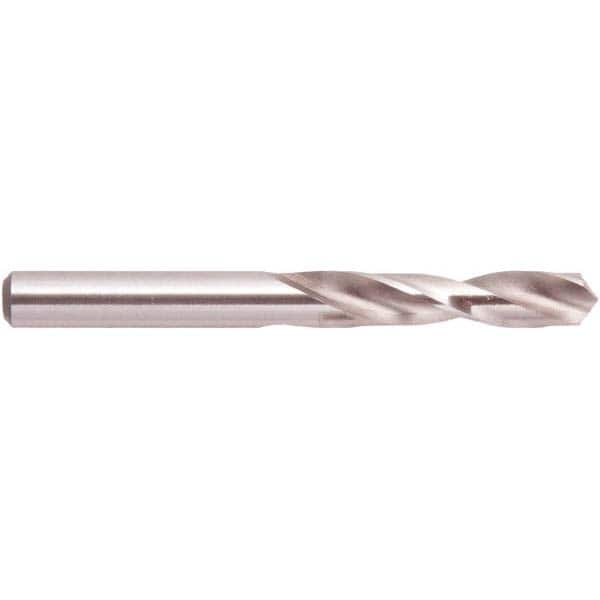

Screw Machine Length Drill Bit: 0.8906″ Dia, 118 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 241
Item #: 58851668
Brand: National Twist Drill
Model #: 016357AW
Product Specifications
| Drill Bit Size (Inch) | 57/64 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.8906 |
| Drill Bit Size (Decimal Inch) | 0.8906 |
| Overall Length (Decimal Inch) | 5.6250 |
| Overall Length (Inch) | 5-5/8 |
| Series | 241 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 2 |
| Shank Length (Decimal Inch) | 2.0000 |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Flute Length (Decimal Inch) | 3.6250 |
| Flute Length (Inch) | 3-5/8 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
