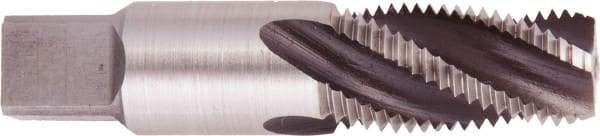

Regal Cutting Tools - 3/8-18 NPT, 4 Flutes, Taper Chamfer, Bright Finish, High Speed Steel, Spiral Flute Pipe Tap - Right Hand Flute, 0.7" Shank Diam, 1-1/16" Thread Length, 0.4540" Projection, 1/2" Square Size,
Item #: 58850280
Brand: Regal Cutting Tools
Model #: 008857AS
Exact Tooling IR#: 04
Features and Benefits
NPT (National Pipe Taper) refers to American National Standard Taper Pipe Threads. They are commonly used for general purpose applications and require a sealant.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Taper chamfers are known as a starter tap. They have a longer chamfer and require a less aggressive cutting action. They are 7 to 10 threads.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-18 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Number of Flutes | 4 |
| Overall Length (Inch) | 2-9/16 |
| Thread Length (Decimal Inch) | 1.0625 |
| Thread Length (Inch) | 1-1/16 |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Length (Inch) | 1/2 |
| Square Size (Decimal Inch) | 0.5310 |
| Flute Direction | Right Hand |
| Projection (Decimal Inch) | 0.4540 |
| Chamfer | Taper |
