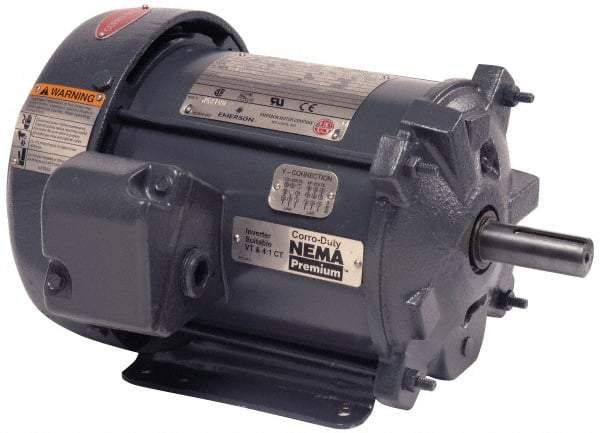

US Motors - 1.5 hp, TEFC Enclosure, No Thermal Protection, 1,750 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 145T Frame, Rigid Mount, 1 Speed, Ball Bearings, 4.3/2.1 Full Load Amps, F Class Insulation, Reversible
Item #: 58755455
Brand: US Motors
Model #: C32P2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1750 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 145T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 4.3/2.1 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 13.8800 |
| Shaft Diameter x Length (Inch) | 7/8 x 2-1/4 |
| Full Load Efficiency Rating | 86.50 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
