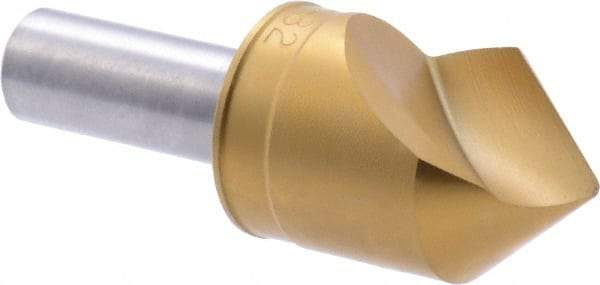

M.A. Ford - 1" Head Diam, 1/2" Shank Diam, 1 Flute 82° High Speed Steel Countersink - TiN Finish, 2-3/4" OAL
Item #: 58649773
Brand: M.A. Ford
Model #: 61T100002
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 1 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 1 |
| Included Angle | 82 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (Inch) | 0.1200 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Maximum Cutting Diameter (Inch) | 1 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Countersink Application | Countersinking |
