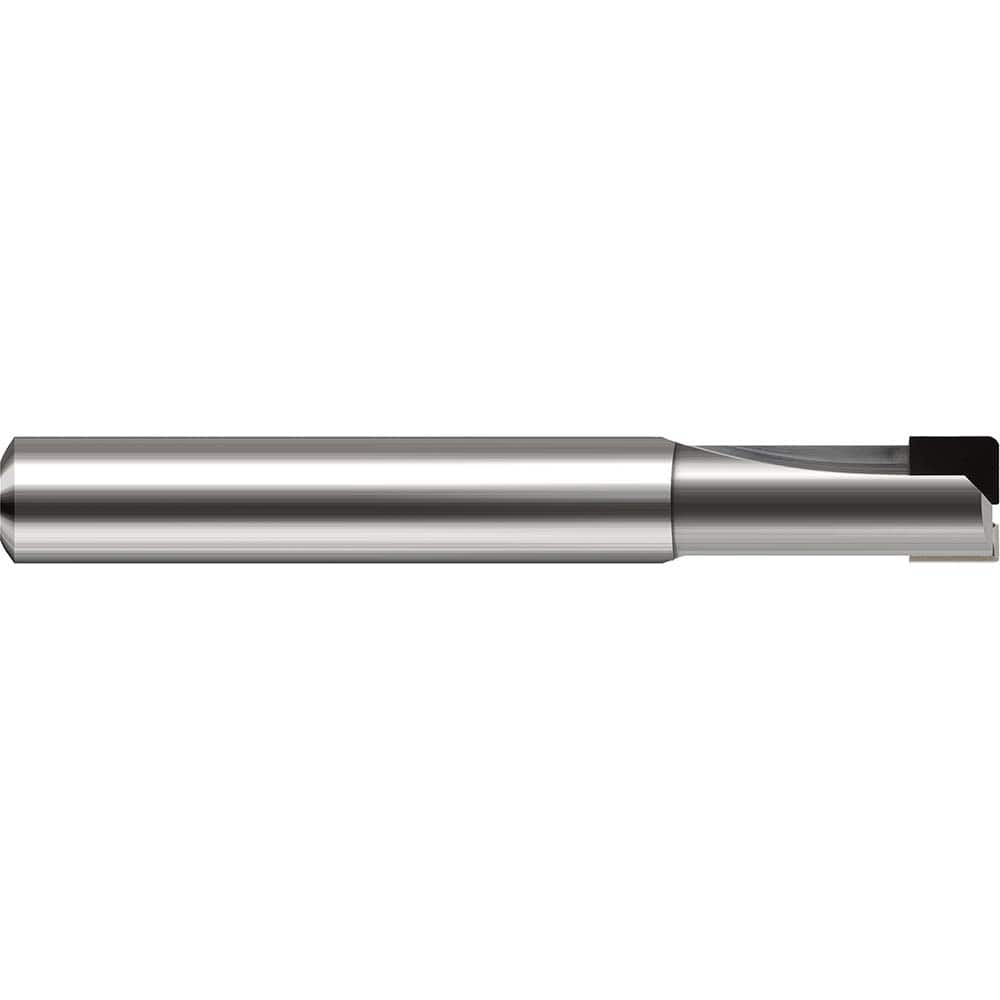

Corner Radius End Mill: 0.187″ Dia, 1/4″ LOC, 1/64″ Radius, 2 Flutes, Brazed Solid Carbide 2″ OAL, 3/16″ Shank Dia, 0 ° Helix, Polycrystaline Diamond Coated, Corner Radius End
Item #: 58631755
Brand: Harvey Tool
Model #: 12212
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1870 |
| Length of Cut (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Corner Radius (Inch) | 1/64 |
| Number Of Flutes | 2 |
| End Mill Material | Brazed Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 0 |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/16 |
| Reach Length (Inch) | 5/8 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Corner Radius |
| Single Or Double End | Single |
| Coating/Finish | Polycrystaline Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
