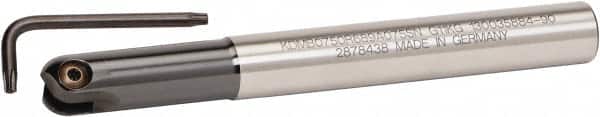

Kennametal - 5/8" Cut Diam, 5/16" Max Depth of Cut, 5/8" Shank Diam, 160mm OAL, Indexable Ball Nose End Mill - 53.09mm Head Length, Straight Shank, KDMB Toolholder, KDMB 0625.. Insert
Item #: 58627100
Brand: Kennametal
Model #: 2878436
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.88 |
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 7.94 |
| Maximum Depth of Cut (Inch) | 5/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.3125 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 0625.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 53.09 |
| Head Length (Decimal Inch) | 2.0900 |
| Neck Diameter (Decimal Inch) | 0.5510 |
| Maximum RPM | 40000 |
