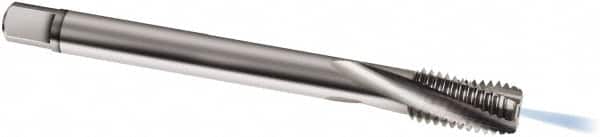

Guhring - M14x1.50 Metric Fine 3 Flute 6H Modified Bottoming Spiral Flute Tap - Solid Carbide, Bright Finish, 100mm OAL, Right Hand Flute, Right Hand Thread, D4/D5, Series 978
Item #: 58604125
Brand: Guhring
Model #: 9009780140070
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M14x1.50 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Thread Limit | D4/D5 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 100.00 |
| Helix Angle | 15 |
| Thread Standard | Metric Fine |
| Flute Type | Slow Spiral |
| Series/List | 978 |
