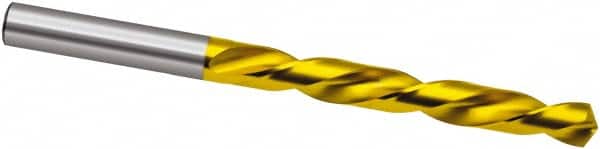

Guhring - #49 118° High Speed Steel Jobber Drill - TiN Finish, Left Hand Cut, Spiral Flute, 46mm OAL, Cone Relief Point
Item #: 58584921
Brand: Guhring
Model #: 9006640018500
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #49 |
| Drill Bit Size (Decimal Inch) | 0.0728 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Left Hand |
| Coolant Through | No |
| Flute Length (mm) | 22.00 |
| Overall Length (mm) | 46.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Cone Relief |
| Shank Diameter (mm) | 1.85 |
| Shank Diameter (Decimal Inch) | 0.0728 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | General Purpose |
| Series/List | 664 |
