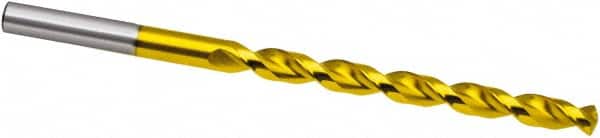

Taper Length Drill Bit: 0.2126″ Dia, 130 ° Coated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 668
Item #: 58582305
Brand: Guhring
Model #: 9006680054000
Product Specifications
| Drill Bit Size (mm) | 5.40 |
| Tool Material | High Speed Steel |
| Coating/Finish | Coated |
| Flute Length (mm) | 91.00 |
| Shank Type | Cylindrical |
| Point Type | Cone Relief |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 139.00 |
| Shank Diameter (mm) | 5.40 |
| Drill Bit Size (Decimal Inch) | 0.2126 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 668 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 3.2640 |
| Maximum Drilling Depth (mm) | 82.90 |
| Shank Length (mm) | 48.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-2 |
