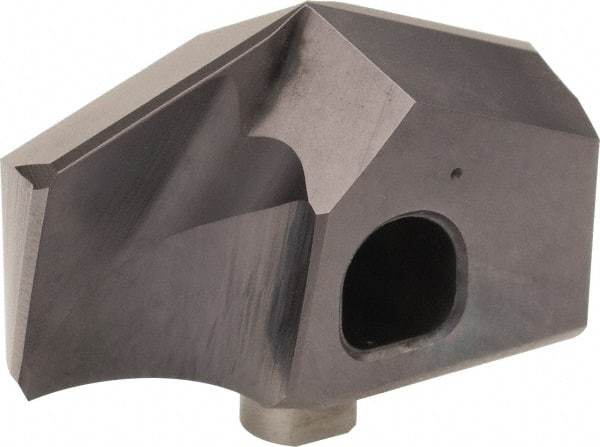

Guhring - Series 4112, 14.6mm Diam Grade K/P 140° Replaceable Drill Tip - Carbide, Nano-FIREX Finish, 145 Seat Size
Item #: 58571860
Brand: Guhring
Model #: 9041120146000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
nano-FIREX is a micro-layered coating that combines the characteristics and universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. The nano-FIREX(R) structure increases overall thickness and shock resistance when compared to FIREX . FIREX is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Diameter (mm) | 14.60 |
| Included Angle | 140 |
| Material | Carbide |
| Manufacturer's Grade | K/P |
| Series | 4112 |
| Coating | Nano-FIREX |
| Insert Seat Size | 145 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Insert Geometry | 2-Facet |
