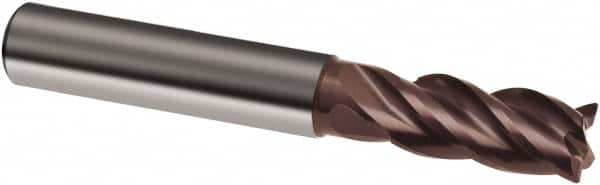

Guhring - 10mm, 22mm LOC, 9.2mm Shank Diam, 72mm OAL, 4 Flute, Solid Carbide Square End Mill - Single End, Super-A Finish, Spiral Flute, 35/38° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3498
Item #: 58554635
Brand: Guhring
Model #: 9034980100200
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Super-A is a multi-layer coating featuring AlTiN. It is used on hardened steels, titanium and nickel-chromium-based alloys. Super-A is a proprietary coating exclusive to Guhring, Inc.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 22.00 |
| Length of Cut (Decimal Inch) | 0.8661 |
| Material | Solid Carbide |
| Finish/Coating | Super-A |
| Shank Diameter (mm) | 9.20 |
| Single or Double End | Single |
| Overall Length (mm) | 72.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 35.00/38.00 |
| Flute Type | Spiral |
| Length Type | Regular |
| Material Grade | Ultra Fine Grain |
| Reach Length (mm) | 32.00 |
| Chipbreaker | No |
| Extended Reach | Yes |
| Series/List | 3498 |
