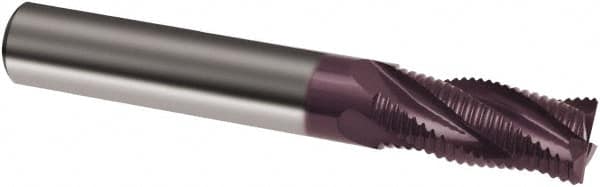

Guhring - 16mm Diam, Coarse Pitch, 32mm LOC, 4 Flute Solid Carbide Corner Chamfer Roughing End Mill - FIREX Finish, 92mm OAL, 16mm Shank Diam, Single End
Item #: 58550773
Brand: Guhring
Model #: 9037230160000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number of Flutes | 4 |
| Pitch | Coarse |
| Length of Cut (mm) | 32.00 |
| Length of Cut (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 16.00 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Finish/Coating | FIREX |
| Overall Length (mm) | 92.00 |
| Centercutting | NonCenter Cutting |
| Extended Reach | No |
| Material Grade | Ultra Fine Grain |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Helical |
| Series/List | 3723 |
| Chipbreaker | No |
