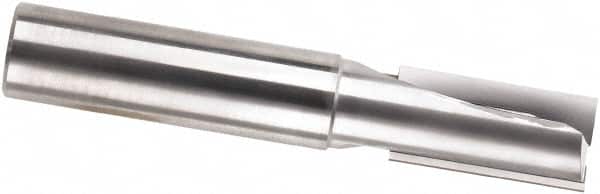

Guhring - 1/2", 1/2" LOC, 1/2" Shank Diam, 3" OAL, 3 Flute, Solid Carbide Square End Mill - Single End, PCD Tipped Finish, Straight Flute, 0° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3870
Item #: 58546581
Brand: Guhring
Model #: 9038700127000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Polycrystalline Diamond (PCD) tipped coatings run at high speeds and increase machine time. It is commonly used on aluminum alloys, composites and extremely difficult-to-machine materials.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material | Solid Carbide |
| Finish/Coating | PCD Tipped |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 0.00 |
| Flute Type | Straight |
| Length Type | Regular |
| Material Grade | Ultra Fine Grain |
| Chipbreaker | No |
| Extended Reach | No |
| Series/List | 3870 |
