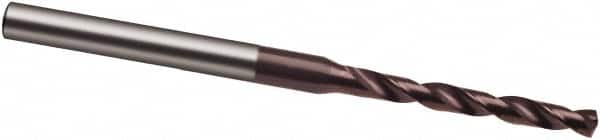

Micro Drill Bit: 0.0209″ Dia, 140 °, Solid Carbide TiAlN Finish, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 3899
Item #: 58544974
Brand: Guhring
Model #: 9038990005300
Product Specifications
| Drill Bit Size (Wire) | #75 |
| Drill Bit Size (mm) | 0.53 |
| Drill Bit Size (Decimal Inch) | 0.0209 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 7.00 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 0.2440 |
| Series | 3899 |
| Overall Length (mm) | 38.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h7 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (mm) | 3.00 |
| Flute By Diameter Ratio | 5xD |
| Material Grade | K40 |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
