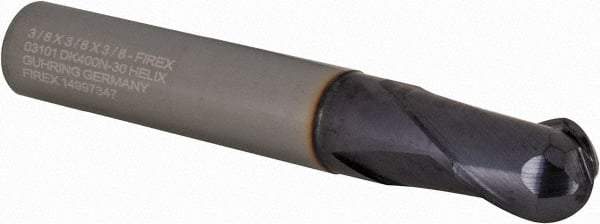

Guhring - 3/8" Diam, 3/8" LOC, 2 Flute Solid Carbide Ball End Mill - FIREX Finish, Single End, 2-1/2" OAL, 3/8" Shank Diam
Item #: 58537465
Brand: Guhring
Model #: 9031010095200
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 3/8 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | FIREX |
| Single or Double End | Single |
| Helix Angle | 30 |
| Reach Length (Decimal Inch) | 1.1970 |
| Series/List | 3101 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
