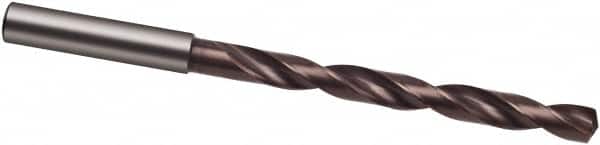

Guhring - 5/32", 140° Point, Spiral Flute, Solid Carbide Taper Length Drill Bit - nano-Si Finish, 37.5mm Flute Length, 75mm OAL, Series 8522
Item #: 58529512
Brand: Guhring
Model #: 9085220039700
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
nano-Si coatings are made of Titanium Aluminum Silicon Nitride (TiAlSiN) and are similar in performance to Diamond-Like Coatings (DLC). It is also similar to FIREX or TiALlN. nano-Si is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | nano-Si |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | HF Point |
| Flute Length (mm) | 37.50 |
| Overall Length (mm) | 75.00 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 7xD |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Web Thinning | Web-Thinning |
| Material Grade | K40 |
| Series/List | 8522 |
