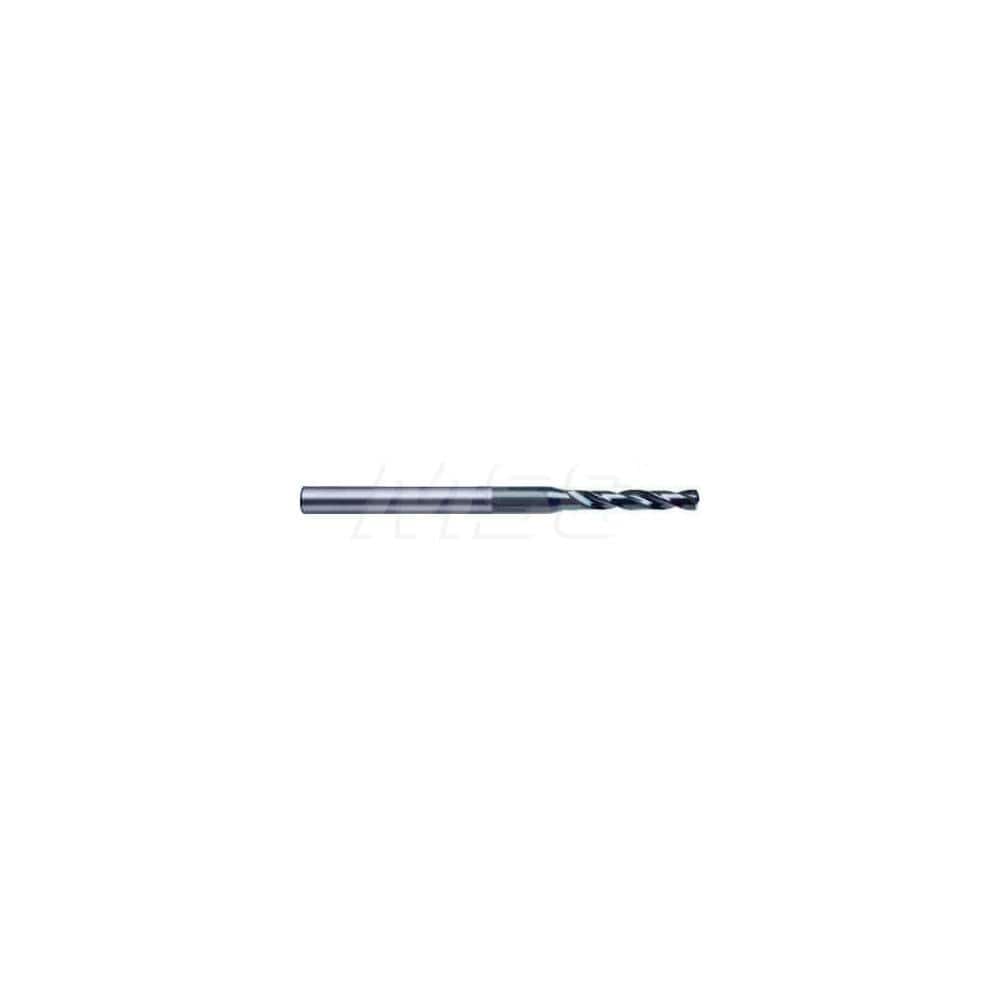

Micro Drill Bit: 0.0748″ Dia, 140 °, Solid Carbide TiAlN Finish, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6400
Item #: 58526468
Brand: Guhring
Model #: 9064000019000
Product Specifications
| Drill Bit Size (mm) | 1.90 |
| Drill Bit Size (Decimal Inch) | 0.0748 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 11.40 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 0.3580 |
| Series | 6400 |
| Overall Length (mm) | 52.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | m7 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; N |
| Shank Diameter (mm) | 3.00 |
| Flute By Diameter Ratio | 4xD |
| Material Grade | K40 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
