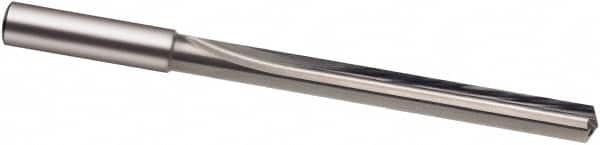

Die Drill Bit: 0.1575″ Dia, 130 °, Solid Carbide Bright Finish, Series 6069
Item #: 58526153
Brand: Guhring
Model #: 9060690040000
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 4.00 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (mm) | 45.00 |
| Drill Point Angle | 130 |
| Overall Length (mm) | 97.00 |
| Shank Diameter (mm) | 6.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.1575 |
| Material Grade | Sub Micrograin |
| Series | 6069 |
| Number Of Flutes | 2 |
| Point Type | Special |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Cast Iron |
| Secondary Workpiece Material | Cast Iron |
| Flute By Diameter Ratio | 7xD |
