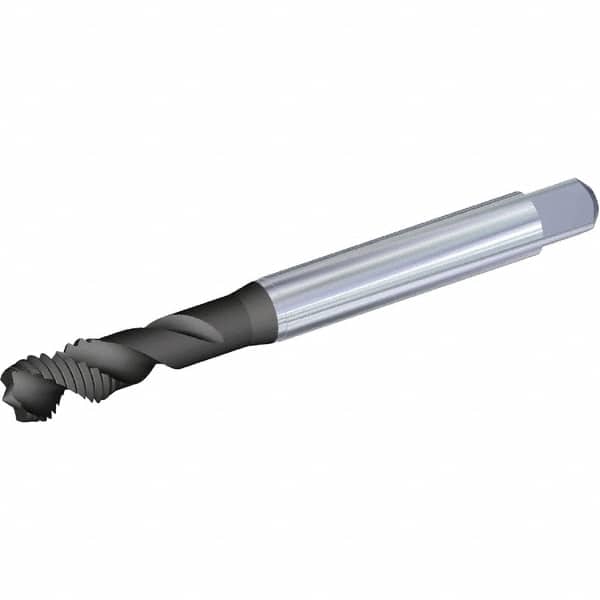

Kennametal - M12x1.75 Metric 3 Flute 6H Plug Spiral Flute Tap - High Speed Steel, Diamond-Like Carbon (DLC) Finish, 110mm OAL, Right Hand Flute, Right Hand Thread, Series T680
Item #: 58521873
Brand: Kennametal
Model #: 4159955
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M12x1.75 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Diamond-Like Carbon (DLC) |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.7087 |
| Thread Length (mm) | 18.00 |
| Flute Type | Fast Spiral |
| Series/List | T680 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.00 |
| Material Application | Non-Ferrous Materials |
